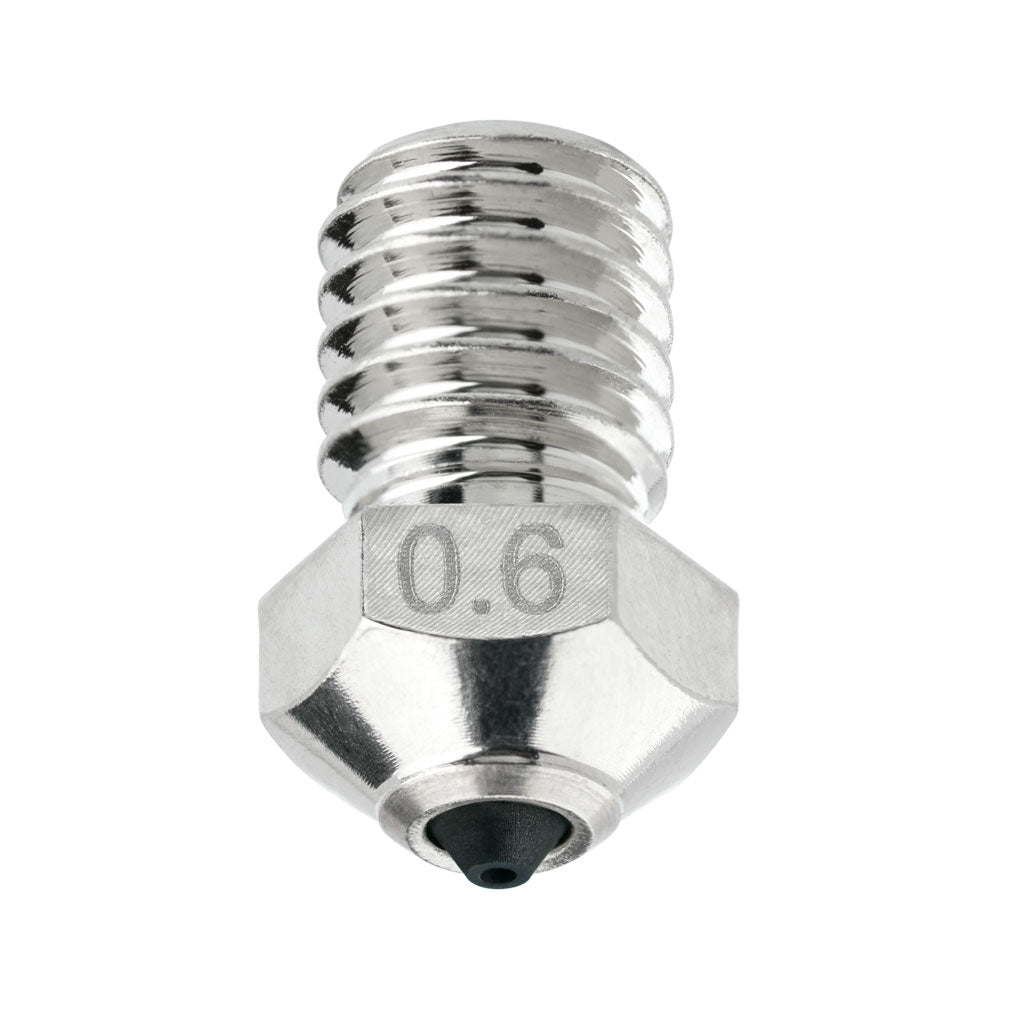

This V6 nozzle combines a polycrystalline diamond (PCD) tip with a nickel-plated copper body for wear-resistant printing with abrasive and everyday filaments.
Key features
PCD tip: High hardness and abrasion resistance for carbon-fibre, glass-fibre and metal-filled filaments.
Efficient heat transfer: A copper-alloy body and thermally conductive PCD tip support heat transfer to the filament.
Nickel-plated body: Helps reduce material adhesion and protects the copper against oxidation.
Polished funnel-shaped internal passage: Designed to reduce material build-up in internal corners and the risk of carbonisation and blockages.
Everyday versatility: Also suitable for PLA, PETG, ABS and TPU, subject to your printer's material capabilities.
Specifications
Nozzle diameter: Choose 0.4 mm or 0.6 mm
Tip material: Polycrystalline diamond (PCD)
Body material: Nickel-plated copper alloy
Thread: M6 × 1
Form factor: E3D V6
Filament diameter: 1.75 mm
Compatibility and use
For E3D V6 and compatible hotends that accept standard V6 nozzles. Confirm the nozzle form factor and thread against your installed hotend before ordering; an M6 thread alone does not guarantee compatibility.
Use the nozzle profile matching your selected diameter in your slicer and follow your hotend manufacturer's nozzle replacement and tightening instructions. Abrasive-filament suitability does not override your printer's temperature limits or the filament manufacturer's processing requirements. Check the filament manufacturer's minimum nozzle diameter before printing filled materials; some require a nozzle larger than 0.4 mm.
Choose your nozzle size
0.4 mm: A versatile choice for everyday printing and finer detail.
0.6 mm: Supports wider extrusion lines for larger parts; check your filament manufacturer's minimum nozzle diameter.
Package contents: 1 × V6 PCD nozzle in the selected diameter.
