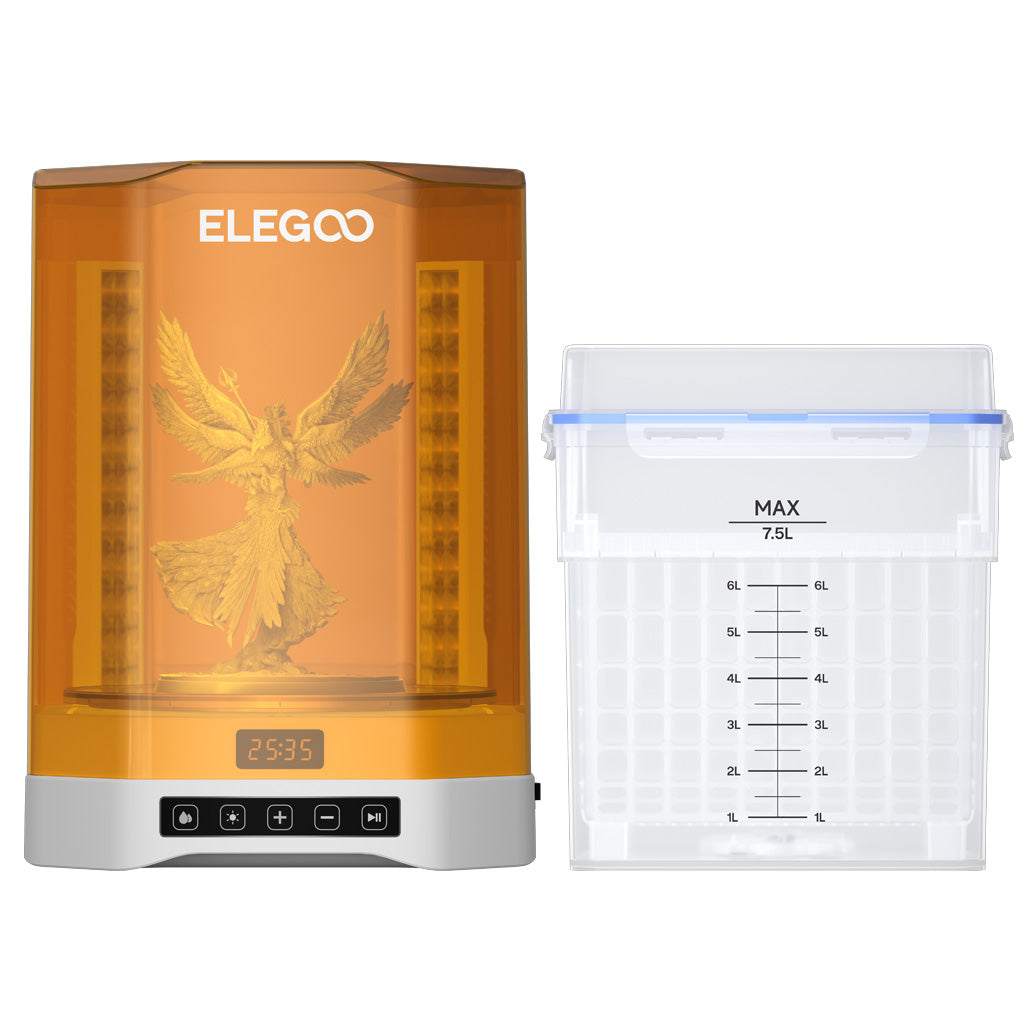

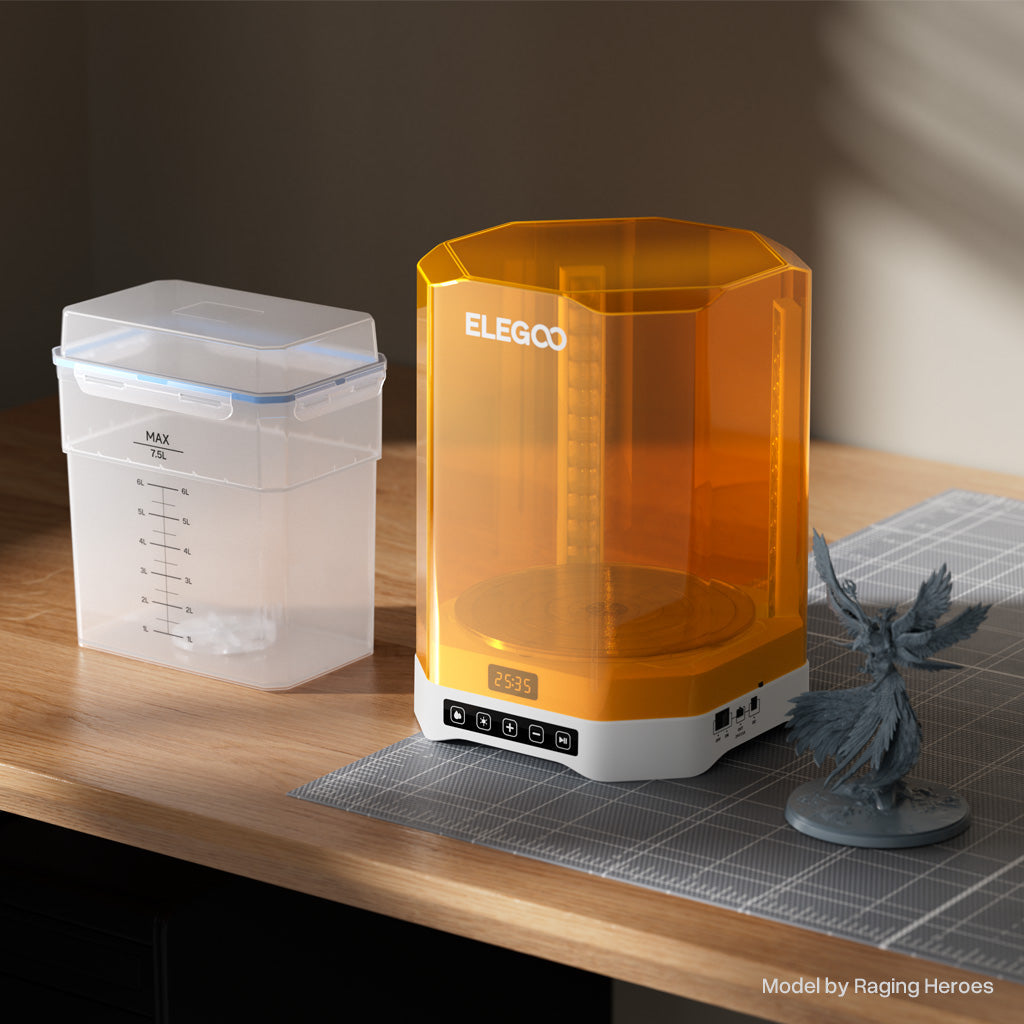

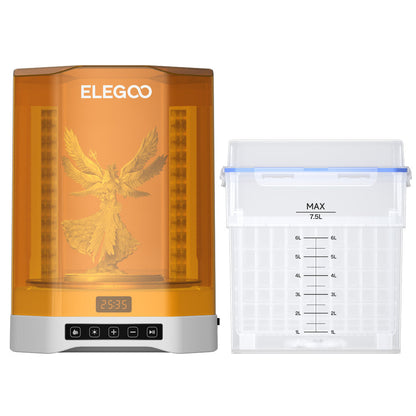

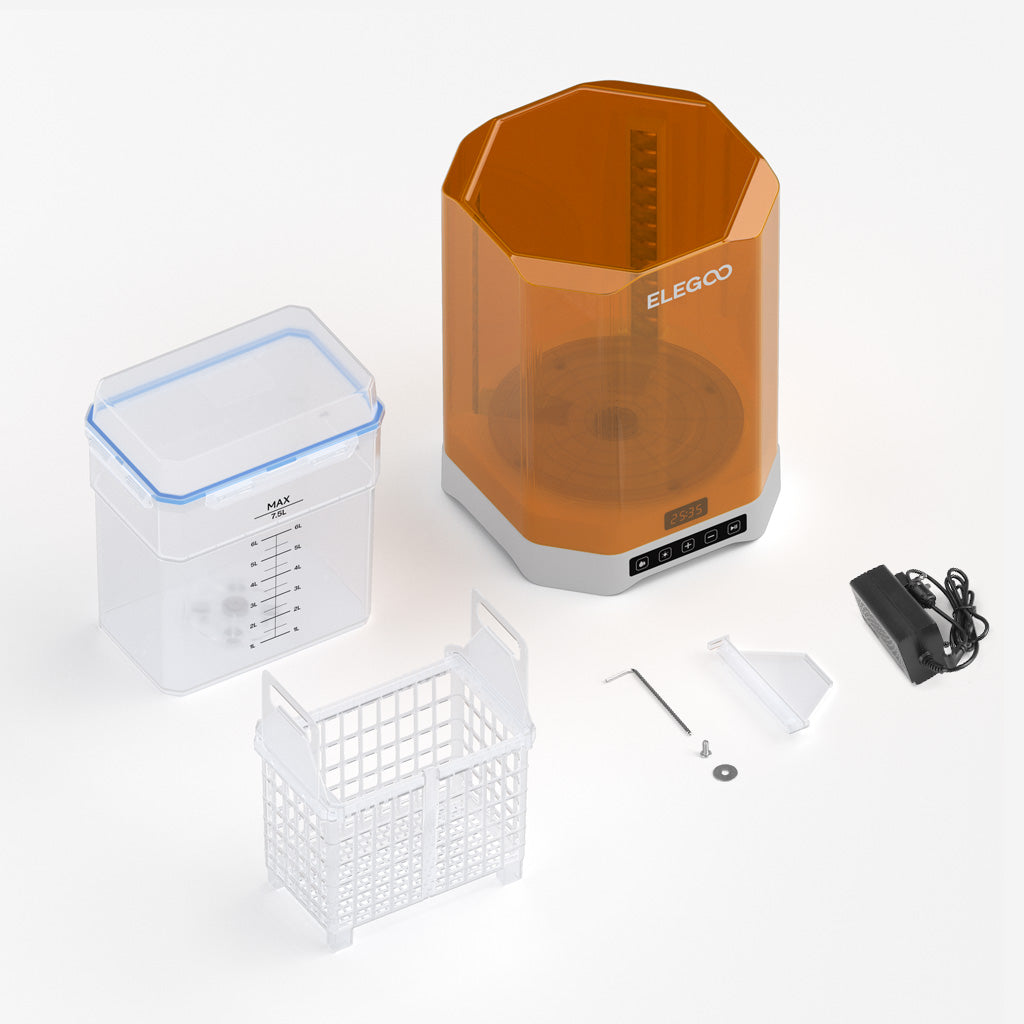

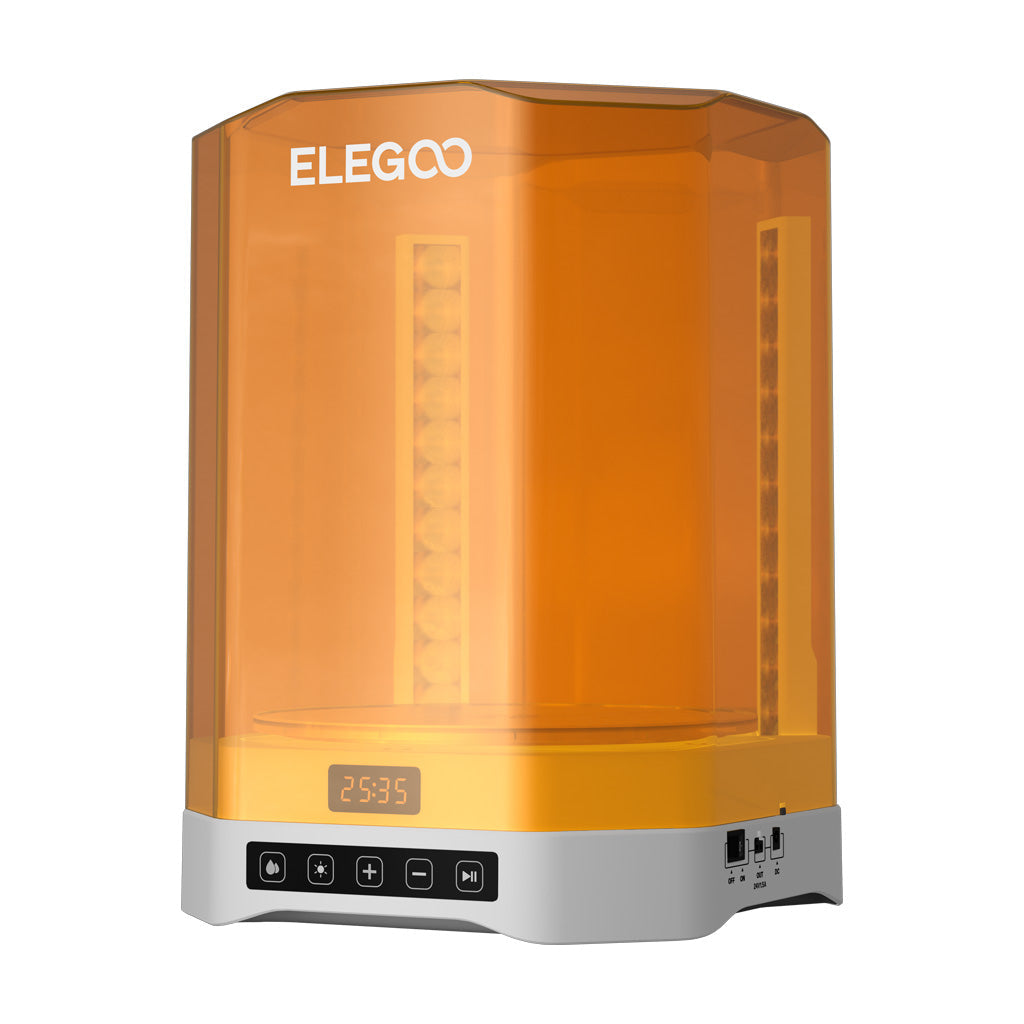

The ELEGOO Mercury Plus V3.0 combines washing and UV curing in one compact resin-print post-processing station. Its larger 7.5 L washing bucket and expanded curing area suit individual large models or batches of smaller prints.
Key features
2-in-1 washing and curing: switch between a sealed wash bucket and a transparent rotating curing platform.

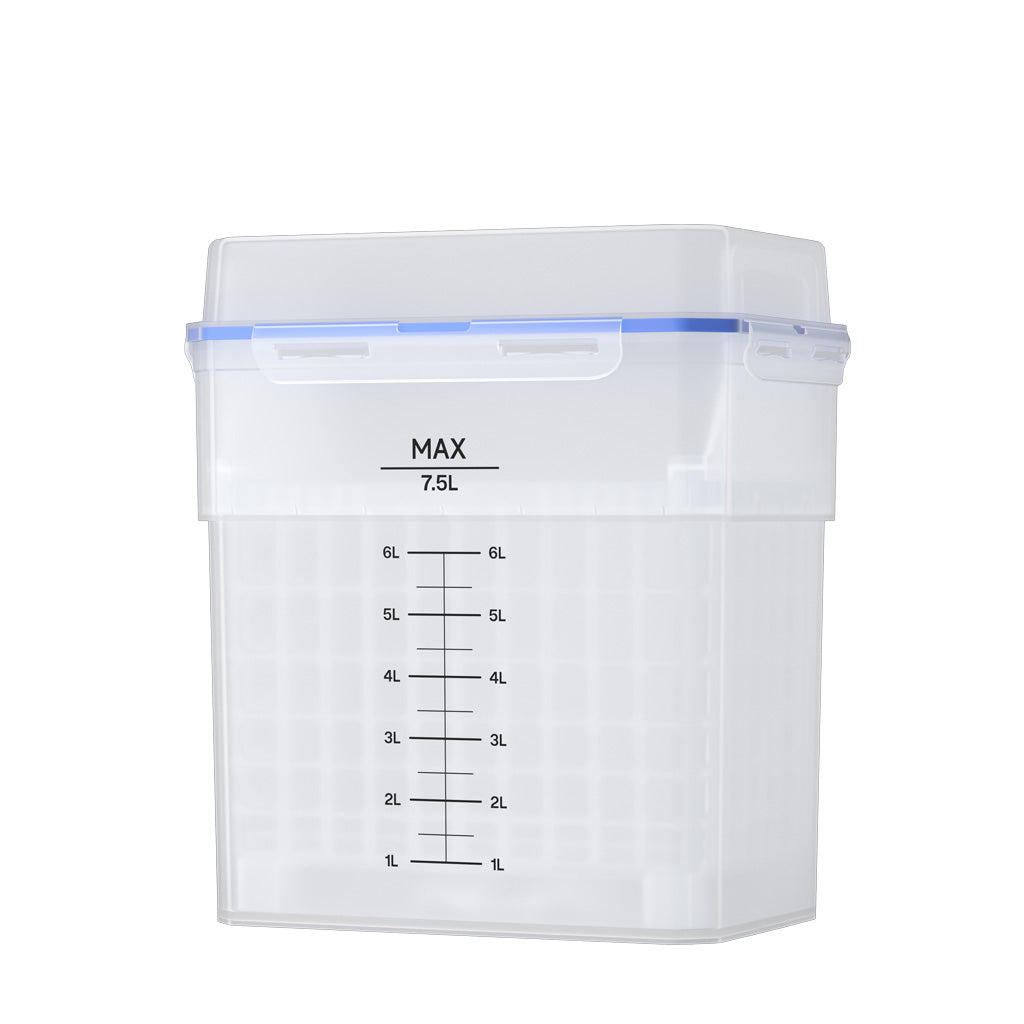

7.5 L washing capacity: 2.1 times the capacity of the Mercury Plus V2.0.

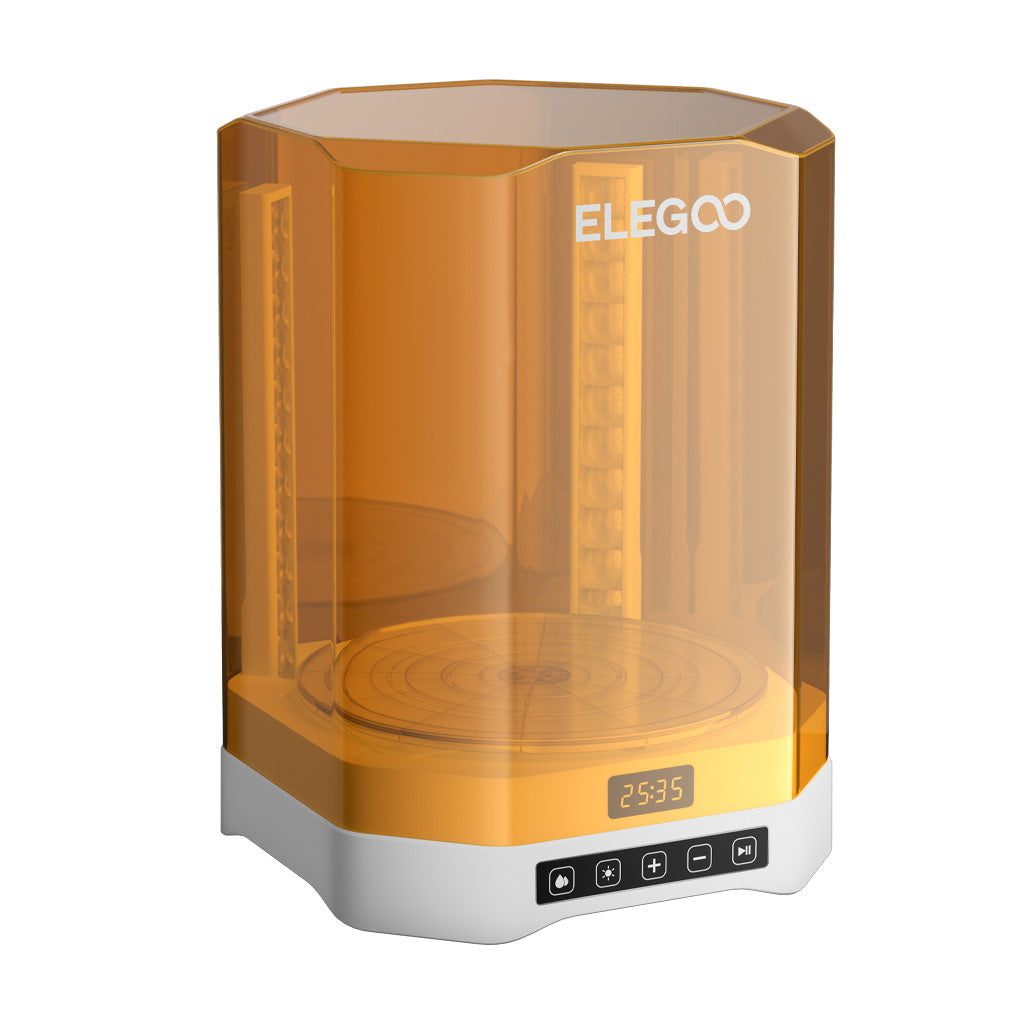

360° curing: a rotating turntable, 24 × 405 nm UV LEDs and lower illumination beneath the transparent platform provide even top-to-bottom exposure.

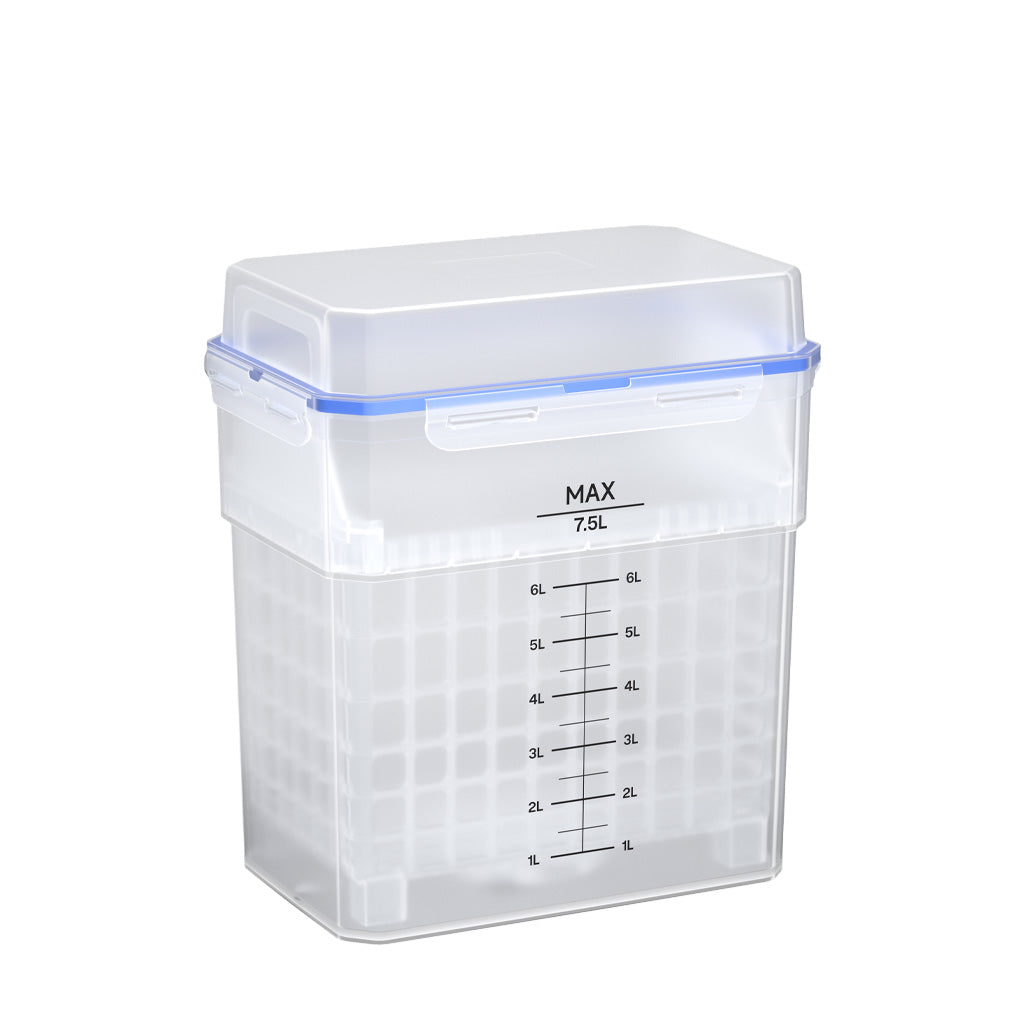

Flexible washing: clean prints in the basket after removal or mount a compatible build platform above the bucket.
Touch controls: select wash or cure cycles from 0–30 minutes.
UV-protective cover: operation pauses if the cover is removed.
Specifications
Washing-bucket capacity
7.5 L
Maximum washing size with build platform
214 × 135 × 180 mm
Maximum washing size without build platform
230 × 135 × 260 mm
Maximum curing size
Ø250 × 290 mm
Curing wavelength
405 nm
Cycle time
0–30 minutes
Machine dimensions
302.5 × 302.5 × 412.5 mm
Net weight
4.7 kg
Rated power
60 W
Power requirements
100–240 V AC, 50/60 Hz; 24 V, 2.5 A
Compatibility
Designed for resin models from ELEGOO Mars and Saturn-series printers and compatible LCD, DLP and SLA workflows where the model fits within the stated washing and curing dimensions. Build-platform washing depends on the platform fitting the supplied support.
Safe use
Cleaning liquid is not included. Follow the resin manufacturer's washing instructions. When using isopropyl alcohol or another flammable cleaning liquid, work in a well-ventilated area away from heat, sparks and flames, and wear suitable gloves and eye protection.
