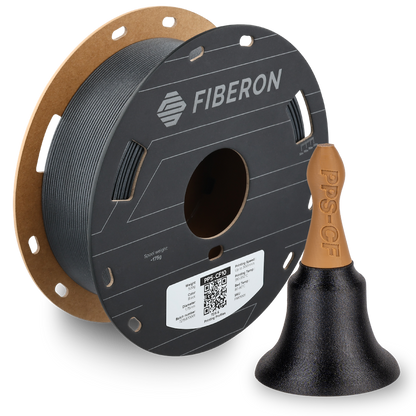

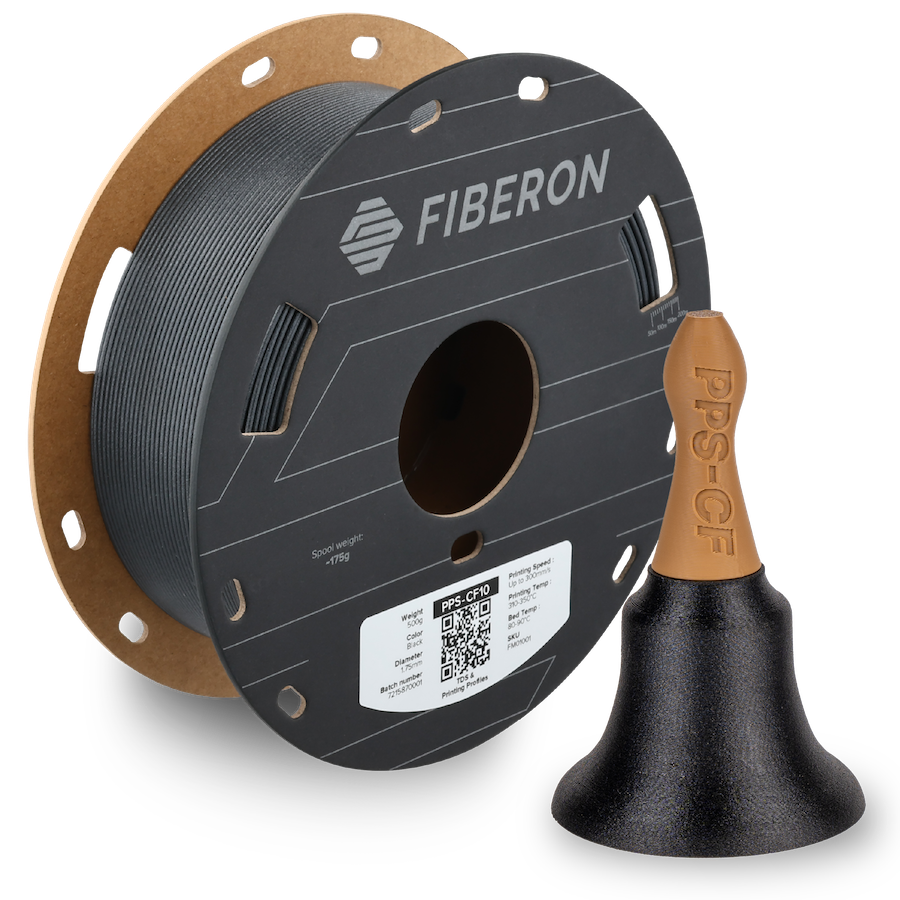

Polymaker Fiberon PPS-CF10 is a high-performance engineering filament made from polyphenylene sulfide (PPS) reinforced with 10% carbon fibre. Designed for industrial-grade 3D printing, it combines exceptional heat resistance, chemical resistance, dimensional stability, electrical insulation, and lightweight rigidity in a material built for demanding functional applications.
Unlike many ultra-high-performance polymers, PPS-CF10 offers a more manageable printing experience while still delivering outstanding mechanical and thermal performance for end-use parts and precision engineering components.
Key Features
Excellent Heat Resistance Maintains mechanical strength and dimensional stability at elevated temperatures, making it ideal for high-temperature industrial applications.
Carbon Fibre Reinforcement The 10% carbon fibre blend increases stiffness, reduces warping, and improves dimensional accuracy while keeping parts lightweight and rigid.
Outstanding Chemical Resistance Resistant to oils, fuels, solvents, acids, and bases, making it well-suited for harsh industrial, automotive, and chemical-processing environments.
Low Moisture Absorption PPS-CF10 absorbs very little moisture from the environment, helping maintain consistent print quality, mechanical properties, and dimensional precision over time.
Excellent Electrical Insulation Offers strong dielectric properties and low electrical conductivity, making it suitable for electronic housings, sensor mounts, and electrical insulation components.
Industrial-Grade Dimensional Stability Carbon fibre reinforcement minimizes shrinkage and thermal expansion, enabling tight-tolerance parts with excellent long-term stability.
Optimized for High-Speed Printing Despite its advanced engineering properties, Fiberon PPS-CF10 supports printing speeds of up to 250 mm/s, making it more practical than many other high-temperature engineering materials.
Technical Overview
Material: Polyphenylene Sulfide (PPS) reinforced with 10% Carbon Fibre

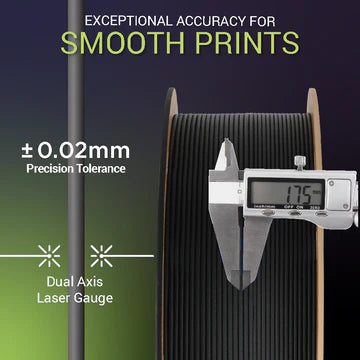

Diameter: 1.75 mm

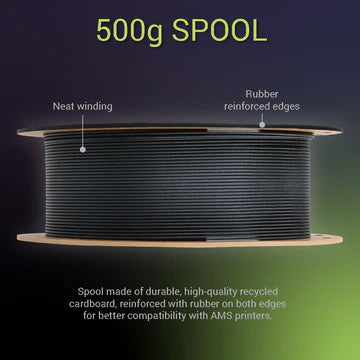

Net Weight: 500g spool
Density: 1.29 g/cm3
Tensile Strength: 59.4 ± 1.3 MPa (XY Orientation)

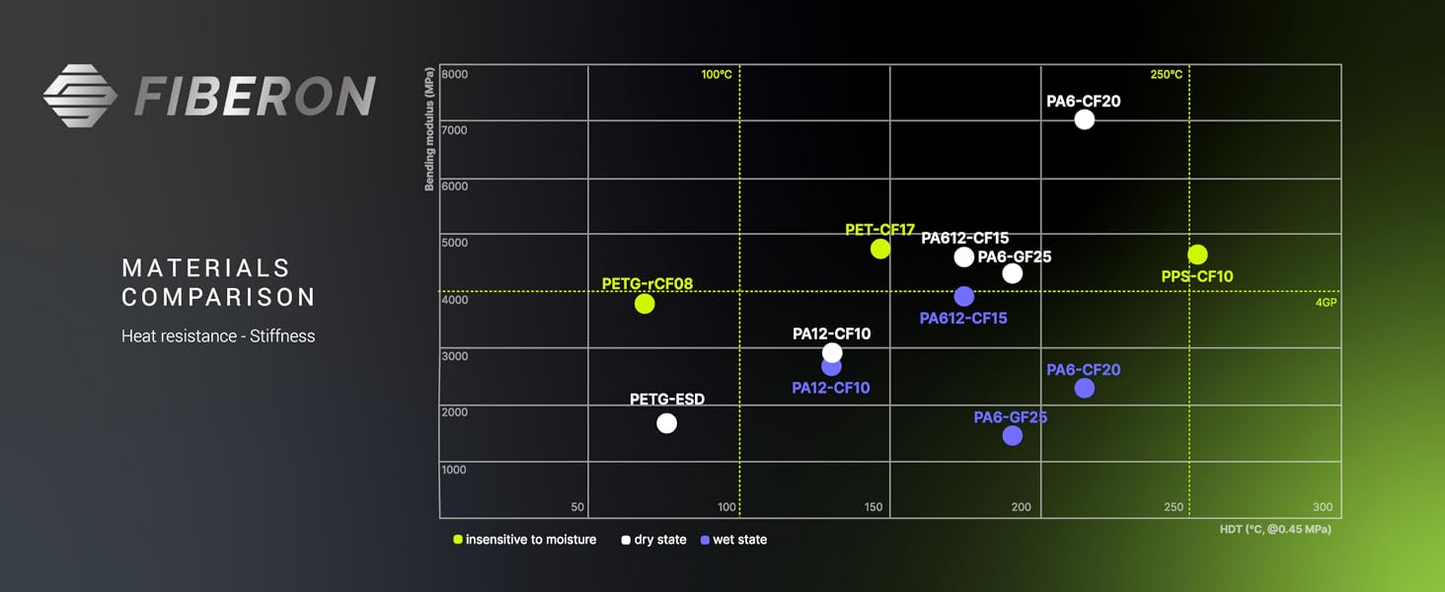

Heat Deflection Temperature (HDT): Up to 252.5°C @ ISO 75 0.45 MPa
Drying: 100°C for 10 hours before printing (recommended)
Bed Adhesion: PEI, PPS-specific build surfaces, or suitable high-temperature adhesive
Enclosure:Enclosed Chamber (Recommended)
Ideal Applications
Polymaker Fiberon PPS-CF10 is engineered for high-temperature, lightweight, and dimensionally critical applications, including:
Lightweight structural components and brackets

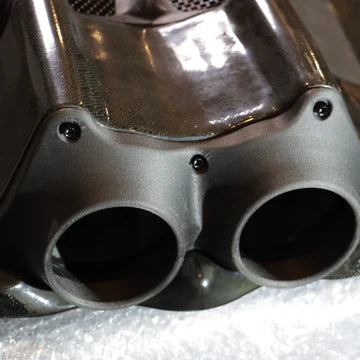

Automotive under-hood parts and sensor mounts
Electrical and electronic housings
Industrial jigs, fixtures, and tooling
Robotics, drone, and aerospace components
Pump, valve, and fluid-handling system parts
Precision spacers, mounts, and mechanical supports
End-use parts requiring heat, chemical, and flame resistance
Whether you're producing industrial-grade functional components or advanced engineering prototypes, Fiberon PPS-CF10 delivers an exceptional balance of thermal stability, chemical resistance, lightweight stiffness, and dimensional precision for the most demanding applications.
