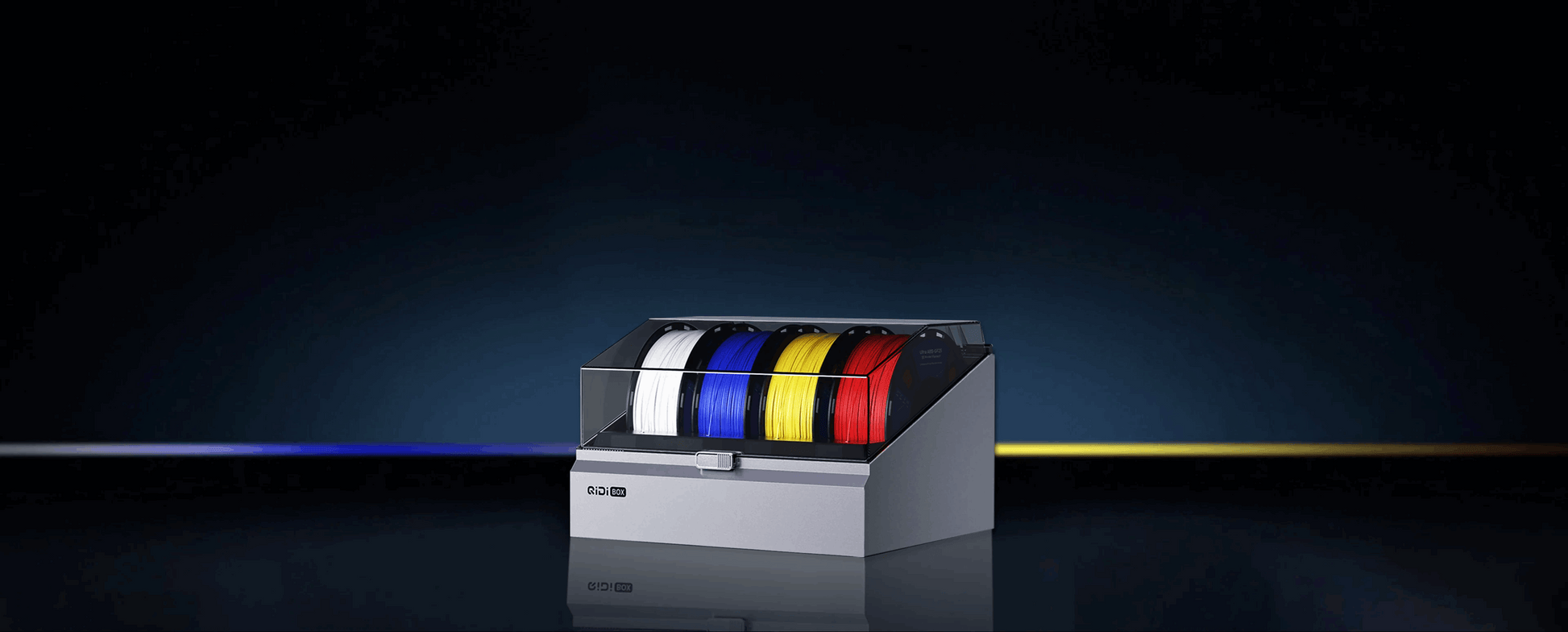

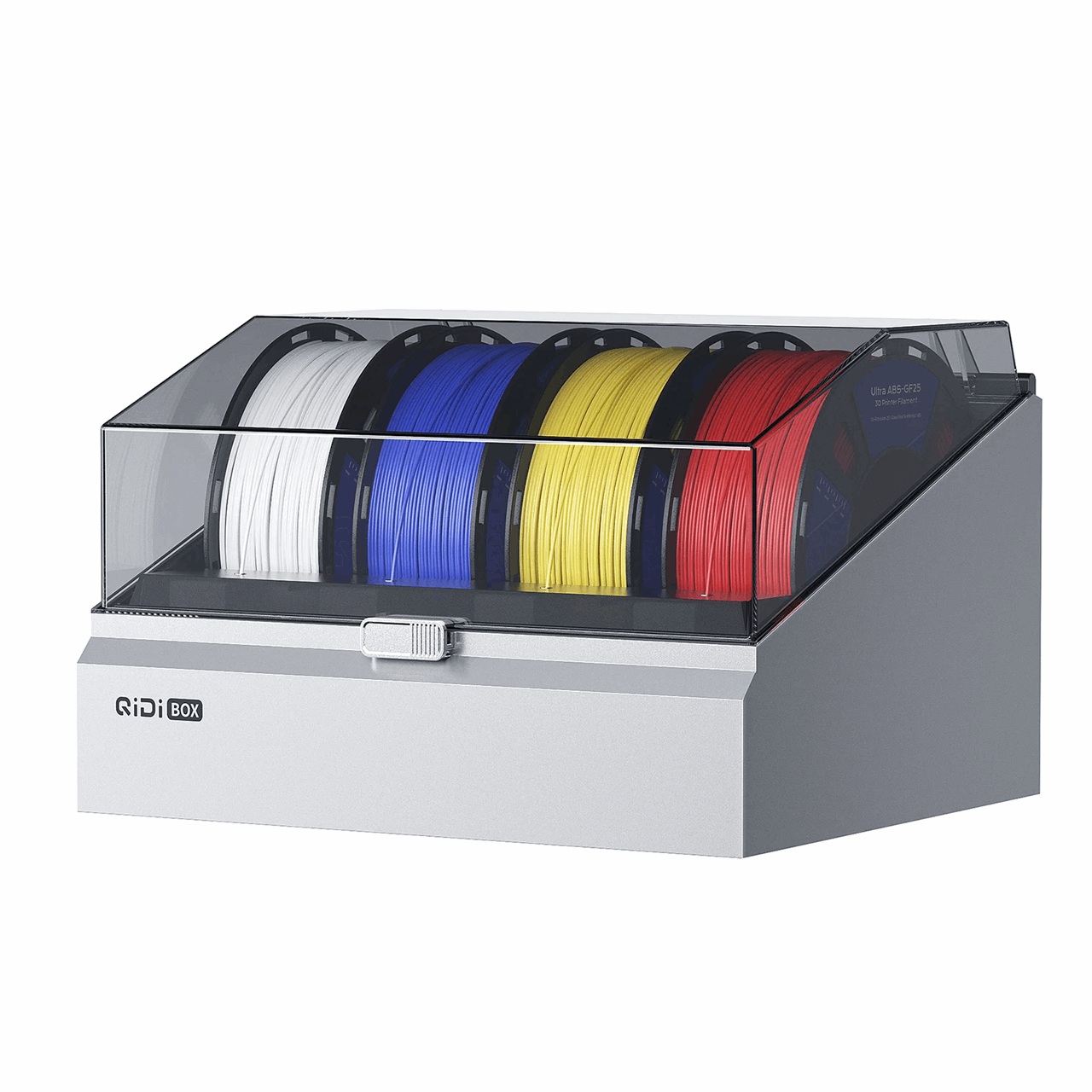

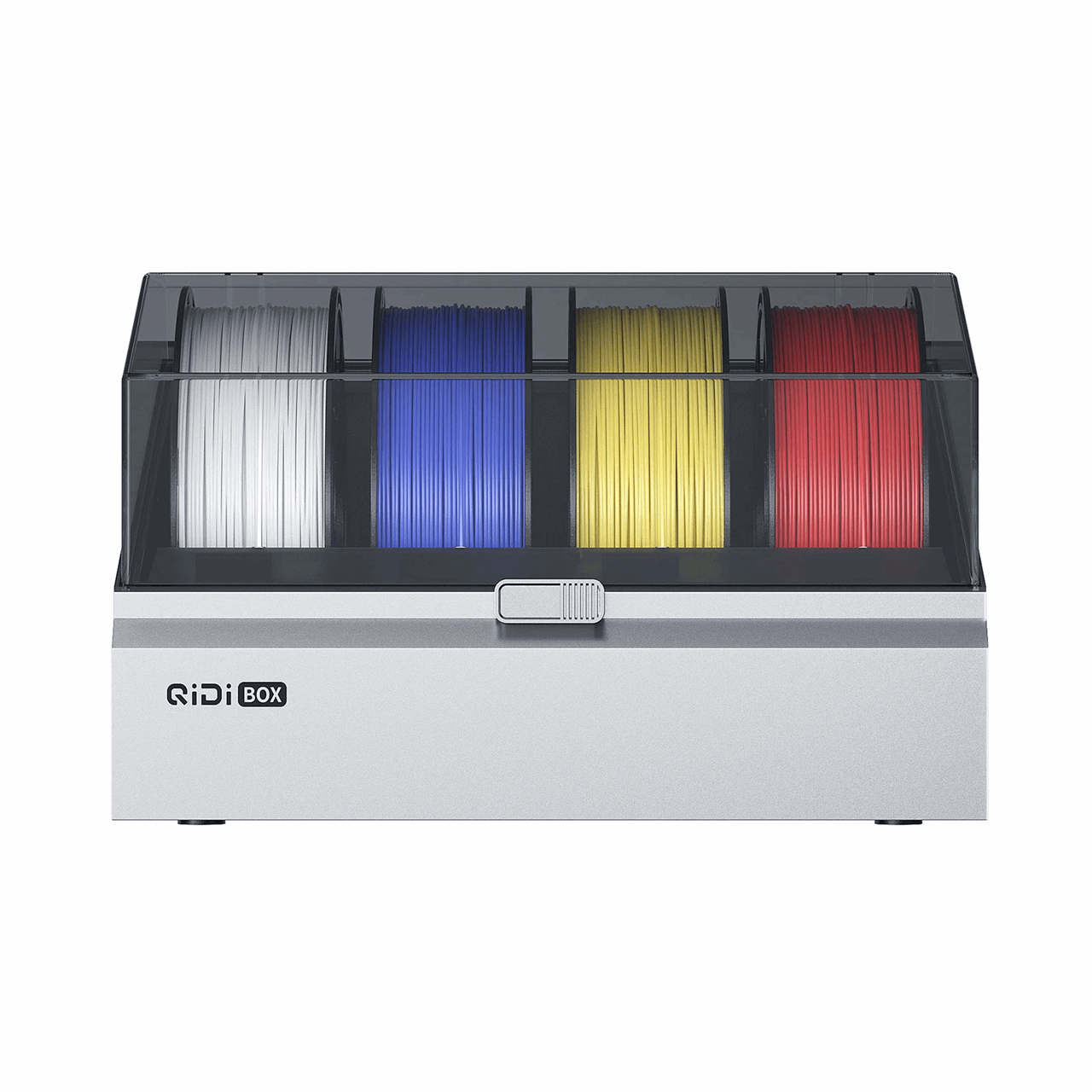

QIDI Box – Multi-Colour Printing and Active Filament Drying
Add automatic filament switching and four-spool management to your compatible QIDI printer. The QIDI Box combines hardened-steel dual-gear feeding, active drying up to 65°C and sealed filament storage.
Choose the version for your printer
-
Q2: select the Q2 version.
-

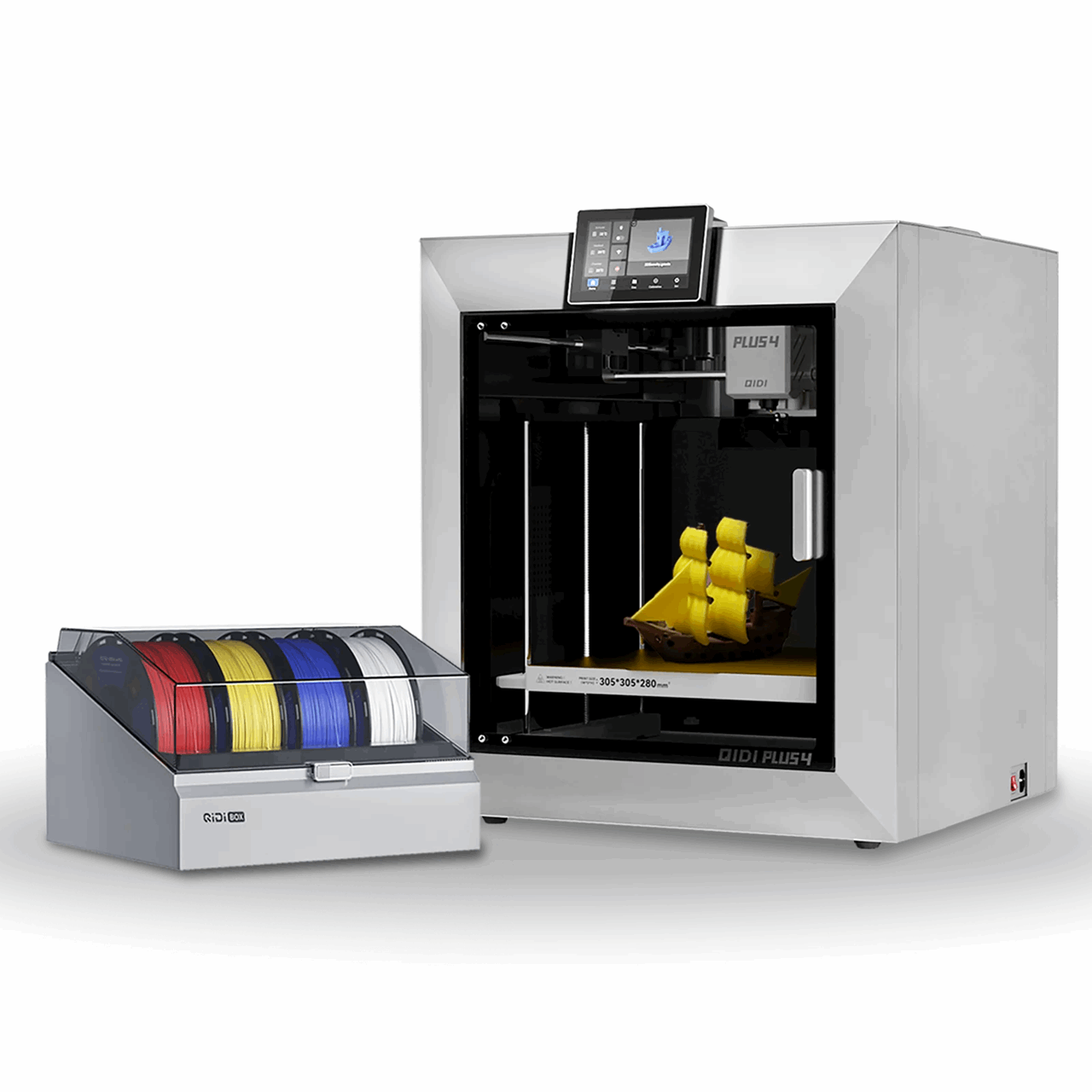

Plus4 (X-Plus4): select the Plus4 version.
-
Max4: select the Max4 version.
-
Plus5: select the Plus5 version.
Important: Choose the matching printer variant before ordering. Each version includes the corresponding printer-specific connection/upgrade accessories. The supplied hub and signal-cable configuration is not universally interchangeable between printer models. Moving a Box to a different model requires the appropriate model-specific upgrade kit, sold separately.
Availability: Variants without local stock are available on special order. Contact ZK Print to confirm lead time before ordering. In-stock availability is shown for the selected variant.
Key features
-
Four filament slots: automatic switching between compatible colours or materials.
-
Expandable to 16 colours: connect up to four QIDI Boxes using the required expansion accessories. Additional Boxes and expansion accessories are sold separately.
-

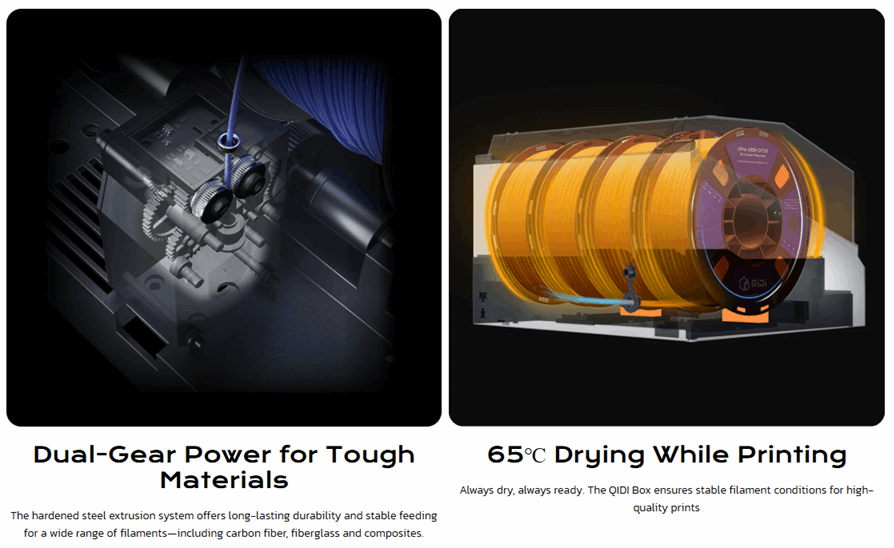

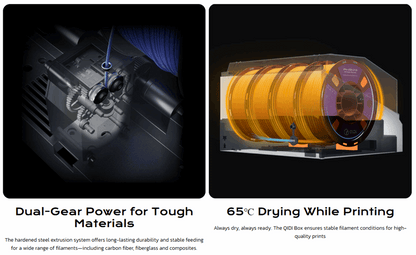

Dry while printing: active drying up to 65°C, sealed storage, desiccant storage and real-time temperature/humidity monitoring.
-
Hardened-steel dual gears: designed for durable feeding, including supported fibre-reinforced filaments.
-

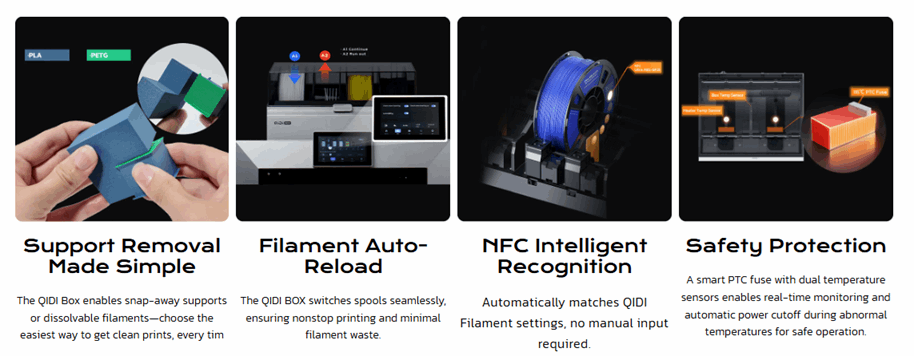

Automatic spool refill: switches to a suitable backup spool when filament runs out.
-
Filament monitoring: tangle, clog and run-out detection.
-
NFC filament recognition: automatic setting recognition with compatible QIDI NFC filament.
-
Temperature protection: dual temperature sensors and PTC fuse protection.
Filament and spool compatibility
Supported for feeding: 1.75 mm PLA, PETG, ABS, ASA, PET, PA, PC, dried PVA, dried BVOH, PP, POM, HIPS, TPU 64D, ABS-CF/GF, PLA-CF/GF, PETG-CF/GF, PPS-CF and PET-CF/GF, subject to the filament manufacturer's requirements.
Not supported: TPE, generic TPU (including TPU 95A), damp PVA/BVOH, QIDI PAHT-CF, some silk PLA and glow-in-the-dark PLA, and other excessively rigid or flexible filaments. Box feeding compatibility does not establish your printer's material capability or guarantee that different materials can be combined in one print.
Spool size: 195–202 mm diameter and 50–72 mm width. Cardboard spools should not be used directly; QIDI recommends a suitable spool adapter or adapter ring.
Drying guidance: 65°C is the maximum temperature, not a fixed setting for every material. Follow the filament manufacturer's drying instructions; materials requiring higher drying temperatures need appropriate separate drying equipment.
Specifications
- Filament slots: 4 per Box
- Filament diameter: 1.75 mm
- Maximum drying temperature: 65°C
- Dimensions: 357 × 300 × 234 mm
- Net weight: 4.35 kg
- Housing: ABS/PC
- Feeding motors: 4 × 42-stepper motors
- Vent: manually operated
- Maximum rated power: 245 W
- Power supply: region-specific 110 V or 220–240 V AC, 50/60 Hz; use the correct regional model and supplied QIDI Box power cord.
What's included
One QIDI Box with the matching printer-specific upgrade/connection accessories for the selected variant. Printer, filament, additional QIDI Boxes and multi-Box expansion accessories are not included.
