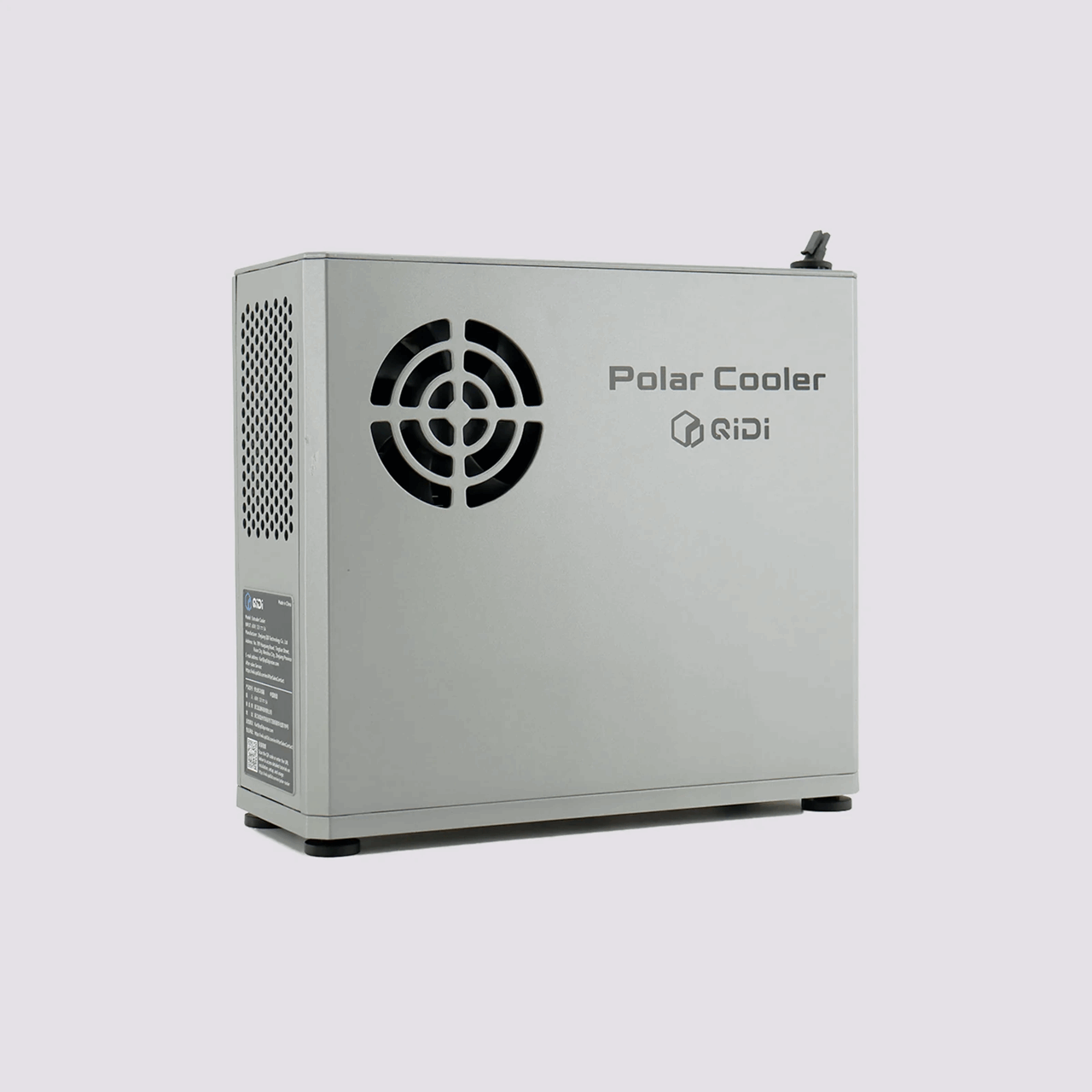

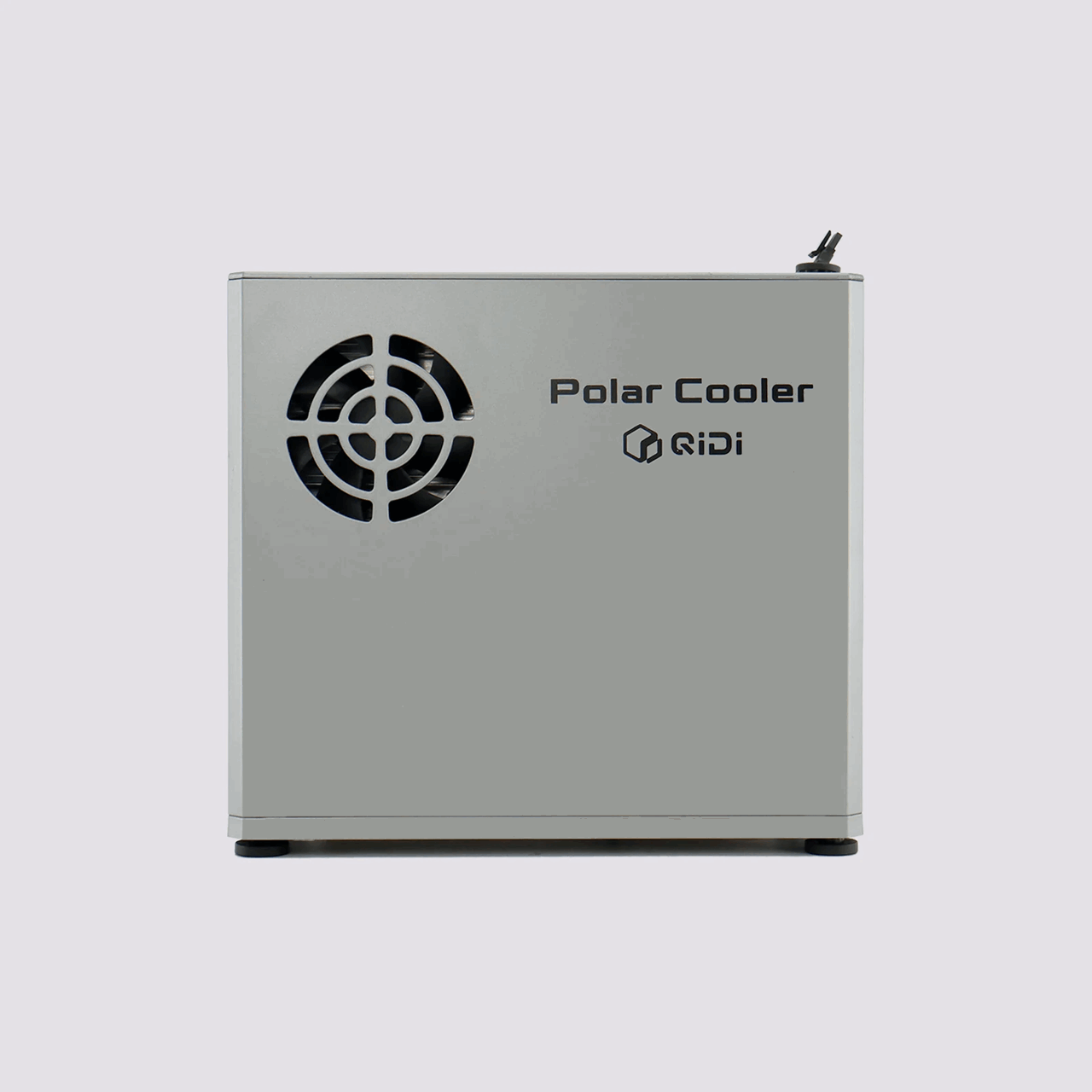

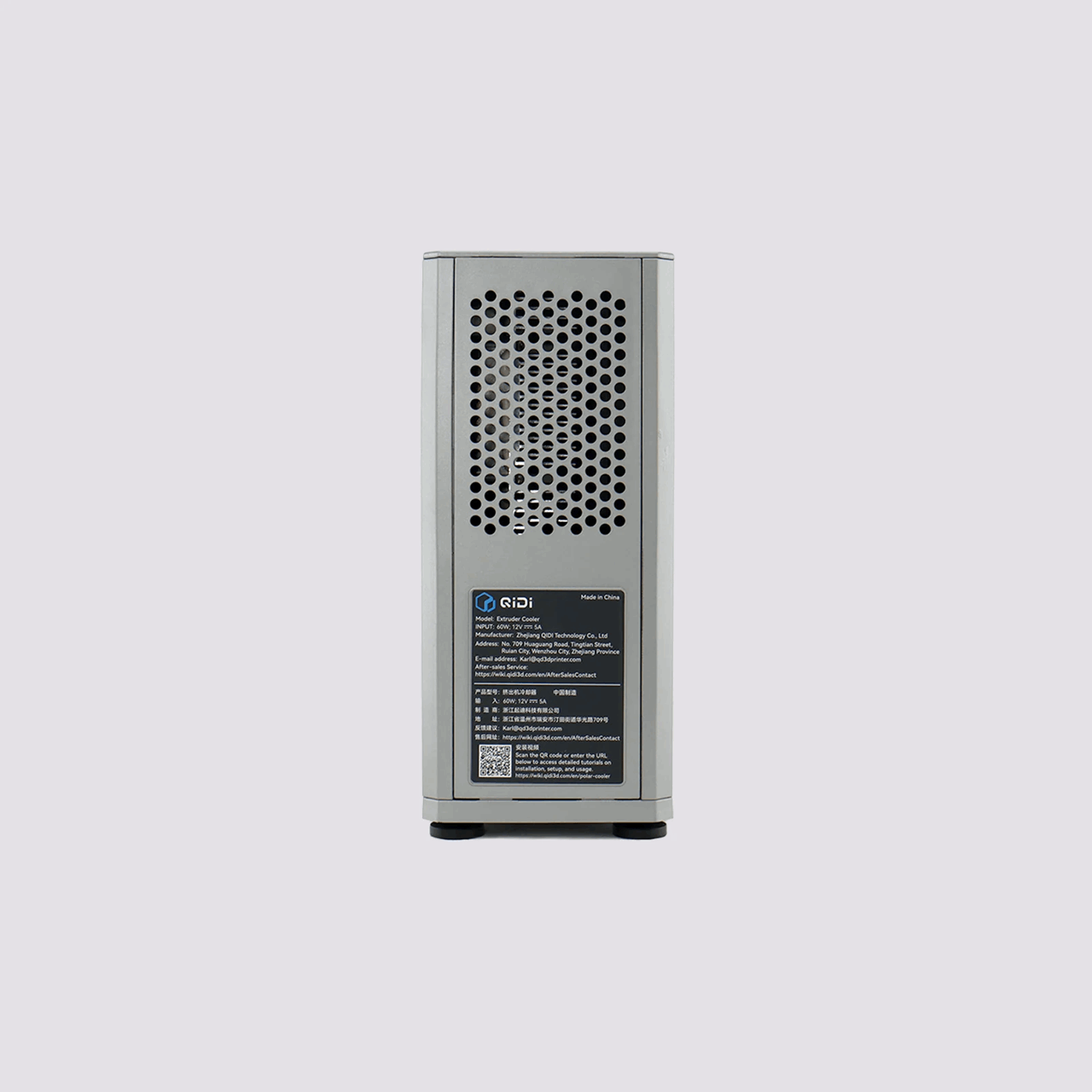

QIDI Tech Polar Cooler – Advanced Extruder Cooling System for 3D Printing (X-Max4 and Q2)
The QIDI Tech Polar Cooler is a high-performance active extruder cooling system designed to improve print reliability, prevent clogs, and enhance overall 3D printing performance. By delivering controlled cold airflow directly to the extruder and filament path, this advanced cooling solution helps maintain stable temperatures during printing.
Ideal for both standard and engineering materials, the Polar Cooler is a powerful upgrade for users looking to achieve consistent, high-quality results.
Prevent Heat Creep & Nozzle Clogs

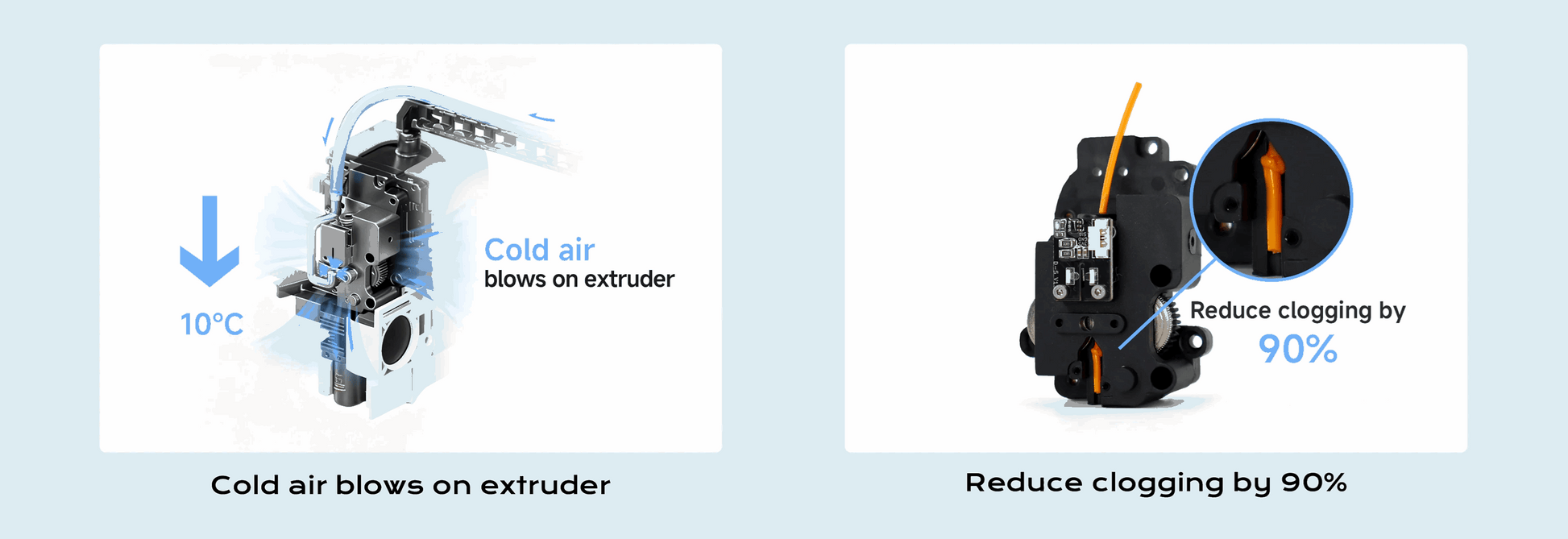

Heat creep is one of the most common causes of extrusion issues in 3D printing. The Polar Cooler actively cools the cold side of the hotend, preventing premature filament softening and significantly reducing clogging issues.
Key Benefits
Active Extruder Cooling
Delivers a steady stream of cooled air directly to the extruder and filament path, maintaining a stable temperature gradient.
Reduce Clogs & Improve Reliability
Minimises heat creep and reduces the risk of jams, ensuring smoother and more consistent printing.
Optimised Extrusion Temperatures
Helps maintain precise extrusion conditions for improved layer adhesion and print quality.
Improved Print Consistency
Supports stable printing environments, especially for large or complex prints, reducing defects and inconsistencies.
Ideal for Engineering Materials
Enhances performance when printing high-temperature and sensitive materials such as ABS, ASA, Nylon, and carbon fiber composites.
Designed for High-Performance Printing

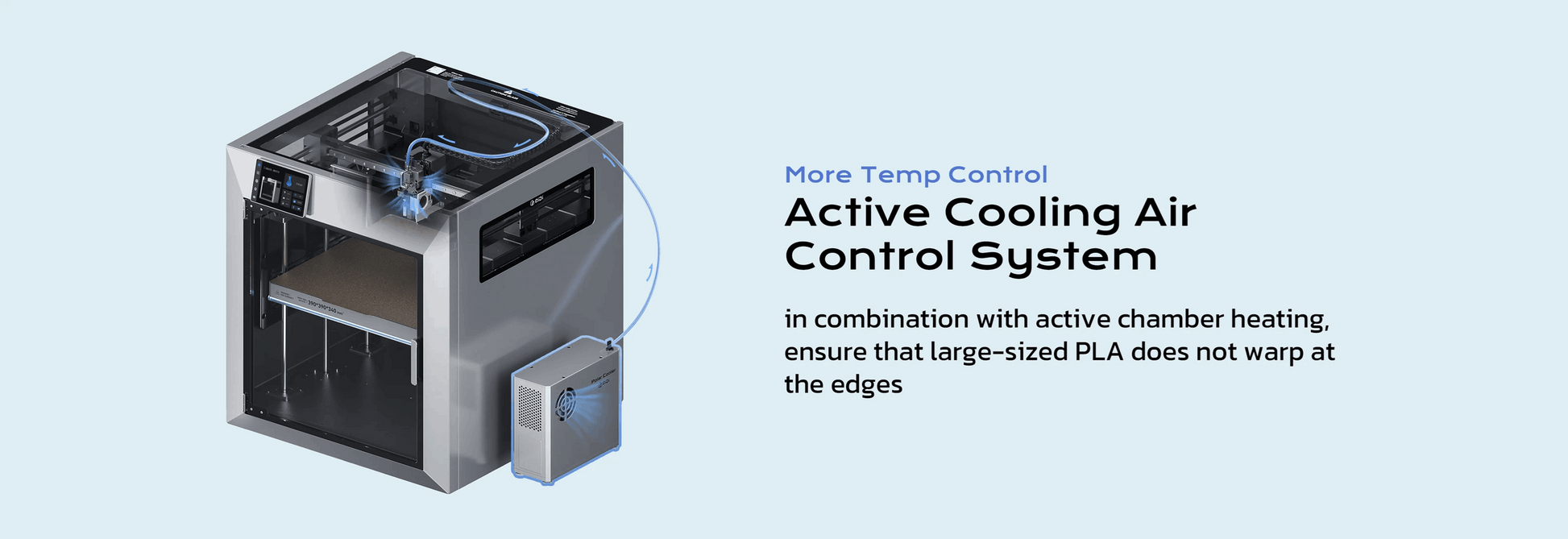

The Polar Cooler is part of QIDI’s advanced thermal management system, designed to work alongside heated chambers and high-temperature hotends. This combination allows for better control over print conditions and improved success rates in demanding applications.
Technical Specifications
Cooling Type: Active air cooling system
Control Mode: Closed-loop
Air Outlet Temperature: 5–10°C
Operating Temperature Range: 0–65°C
Rated Voltage: 12V
Rated Power: 60W
Noise Level: ~54dB
Air Output: 2.8–3.2 mph
Dimensions: 234 × 92 × 214 mm
Net Weight: 1.6 kg
Construction: ABS housing with aluminum heat sink
Ideal Applications
The QIDI Polar Cooler is ideal for:
Preventing nozzle clogs and extrusion issues
Printing high-temperature materials
Large-format and long-duration prints
Improving consistency in print farms
Enhancing reliability in professional workflows
Why Upgrade to the Polar Cooler?
If you’re experiencing clogging, inconsistent extrusion, or difficulty printing advanced materials, the Polar Cooler provides a simple yet powerful solution. It improves airflow, stabilises temperatures, and ensures your printer operates at peak performance.
Reliable Cooling for Better Prints
For users pushing the limits of their 3D printer, the QIDI Tech Polar Cooler is an essential upgrade that delivers improved reliability, better print quality, and reduced downtime.
